0011365: New Event: EVENT_MENU_ISSUE_RELATIONSHIP

ID	Project	Category	View Status	Date Submitted	Last Update
0011365	mantisbt	plug-ins	public	2010-01-08 10:16	2020-03-15 15:23

Reporter	MarkusSchulte	Assigned To	dregad
Priority	normal	Severity	feature	Reproducibility	N/A
Status	closed	Resolution	fixed
Product Version	1.2.0rc2
Target Version	2.24.0	Fixed in Version	2.24.0

Summary	0011365: New Event: EVENT_MENU_ISSUE_RELATIONSHIP
Description	Hi, for time being i am developing a Mantis-Plugin, which is primarily concerned with bug relation. So i have downloaded Mantis 1.2.0 rc2 and added a new Event EVENT_MENU_ISSUE_RELATIONSHIP Necessary Code is attached. Well, this is almost C+P from "function print_summary_menu" (core/html_api.php). Unfortunately i have not found a better way to integrate this new event. Though, i think this additional event is useful, so i would be happy, if someone here could integrate it.
Additional Information	core/relationship_api.php, behind line 820 (right behind the code block "if( ON == config_get( 'relationship_graph_enable' ) ) {[...]}" // Plugins menu items $t_event_menu_options = event_signal( 'EVENT_MENU_ISSUE_RELATIONSHIP' ); $t_menu_options = array(); foreach( $t_event_menu_options as $t_plugin => $t_plugin_menu_options ) { foreach( $t_plugin_menu_options as $t_callback => $t_callback_menu_options ) { if( is_array( $t_callback_menu_options ) ) { $t_menu_options = array_merge( $t_menu_options, $t_callback_menu_options ); } else { $t_menu_options[] = $t_callback_menu_options; } } } foreach( $t_menu_options as $t_menu_name => $t_menu_item ) { echo '<span class="small">'; print_bracket_link($t_menu_item, $t_menu_name ); echo '</span>'; }
Tags	patch
Attached Files	bug_view.png (100,324 bytes) bug_view.png (100,324 bytes) diagram.png (6,948 bytes) diagram.png (6,948 bytes) Mantis Diff.txt (856 bytes) core/events_inc.php, added 'EVENT_MENU_ISSUE_RELATIONSHIP' => EVENT_TYPE_DEFAULT, core/relationship_api.php, added line 821.ff // Plugins menu items $t_event_menu_options = event_signal( 'EVENT_MENU_ISSUE_RELATIONSHIP' ); $t_menu_options = array(); foreach( $t_event_menu_options as $t_plugin => $t_plugin_menu_options ) { foreach( $t_plugin_menu_options as $t_callback => $t_callback_menu_options ) { if( is_array( $t_callback_menu_options ) ) { $t_menu_options = array_merge( $t_menu_options, $t_callback_menu_options ); } else { $t_menu_options[] = $t_callback_menu_options; } } } foreach( $t_menu_options as $t_menu_name => $t_menu_item ) { echo '<span class="small">'; print_bracket_link($t_menu_item, $t_menu_name ); echo '</span>'; } right after if( ON == config_get( 'relationship_graph_enable' ) ) { [...] } Mantis Diff.txt (856 bytes) GANTT.tar.gz (24,213 bytes)

MarkusSchulte 2010-01-08 10:18 reporter ~0024105	Just forgot to mention core/events_inc.php: `'EVENT_MENU_ISSUE' => EVENT_TYPE_DEFAULT,` has local become `'EVENT_MENU_ISSUE' => EVENT_TYPE_DEFAULT, 'EVENT_MENU_ISSUE_RELATIONSHIP' => EVENT_TYPE_DEFAULT,`

dhx 2010-01-10 21:13 reporter ~0024117	I'm trying to work out what the purpose of this new event would be. Are you effectively trying to add custom relationship types via a plugin hook (as opposed to adding relationship types via custom_relationships_inc.php)?

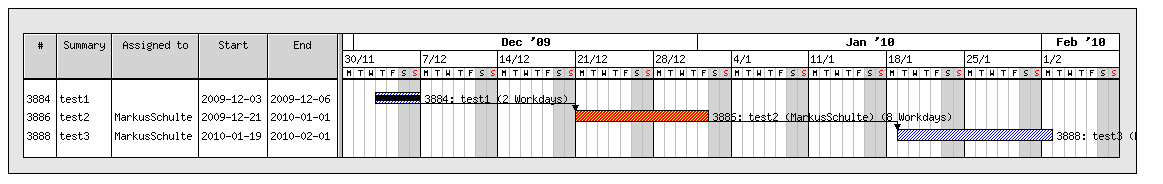

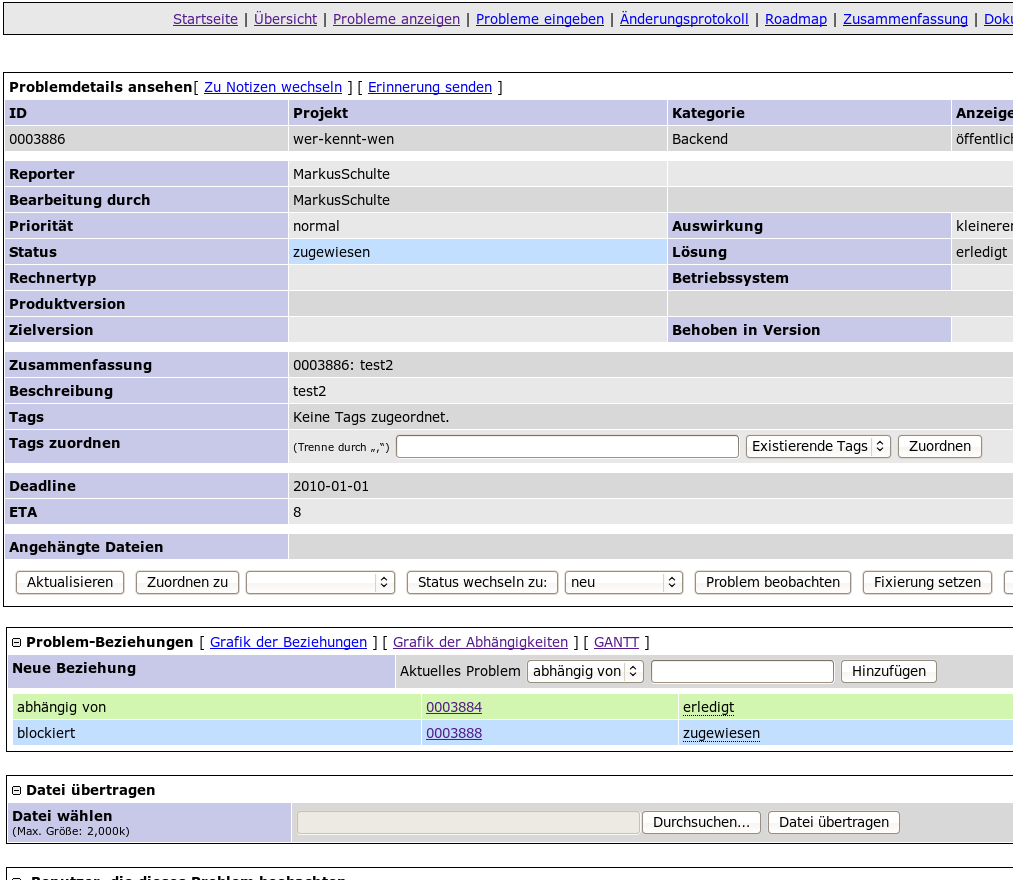

MarkusSchulte 2010-01-11 02:20 reporter ~0024122	Hi, i want to visualize relationships between Issues, similar to the Relation/Dependency Graph. To make myself clear, i have added Screenshots of current Development-State: bug_view.png <-- modified bug view, with the new Event in action diagram.png <-- actual plugin, which visualize the relationships auf a diagram. Not yet integrated, far from final.

dhx 2010-01-11 04:29 reporter ~0024125	I think I understand now. So you need the event to add the [ GANTT ] link? Does it serve any other purpose? The reason I am asking about the need for this event is that we'll need to document it :) Regards, David

MarkusSchulte 2010-01-11 04:43 reporter ~0024126	Yes, i need the event to add the link.

am-gtz 2010-01-13 07:15 reporter ~0024135	Is that plugin available in some git repository? Looks cool!

MarkusSchulte 2010-01-13 08:26 reporter ~0024136	@am-gtz: Thank you! This Plugin is far from stable/final, unfortunately I dont have enough time to complete it. Well, I will publish the plugin on mantisforge when I'm done.

am-gtz 2010-01-13 08:53 reporter ~0024138	You can also publish the current version ... maybe somebody finds it cool enough to help you.

cspmcs 2010-05-05 14:52 reporter ~0025412	I would like to add "Gantt Chart" feature on Mantis 1.1.8, which is considered very useful tool in my research team. I will be very appreciated if someone can give me hints about how to start. Thank you~

MarkusSchulte 2010-05-28 06:20 reporter ~0025620	Hi, i am sorry for my later response; i just do not find the time to develop this plugin anymore. Well, here is my source-code, maybe someone will develop it in the future. In "Mantis Diff.txt" you find the necessary changes to Mantis (added Plugin-Point EVENT_MENU_ISSUE_RELATIONSHIP) In GANTT.tar.gz is the source of the plugin, Screenshot are shown above.

12ways 2011-01-03 04:56 reporter ~0027776	Hi, It looks so nice. It would be great, If it can show gantt chart by project although there is no relation-ship.

dregad 2019-09-21 17:57 developer ~0062873	There is another Gantt Chart plugin: https://github.com/mantisbt-plugins/GanttChart. I'm not sure how much overlap there is between that and the one MarkusSchulte uploaded here many years ago, but I just thought I'd mention it in case someone is interested,

dregad 2019-09-21 20:17 developer ~0062876	PR https://github.com/mantisbt/mantisbt/pull/1567

MantisBT: master 89b126e1 2019-09-21 13:44 dregad Details Diff	New EVENT_MENU_ISSUE_RELATIONSHIP event Allows plugins to add new links to the menu under the Relationships section in the View Issue Details page. Fixes 0011365	Affected Issues 0011365
	mod - bug_view_inc.php	Diff File
	mod - core/events_inc.php	Diff File
	mod - docbook/Developers_Guide/en-US/Events_Reference_Output.xml	Diff File
