View Issue Details

IDProjectCategoryView StatusLast Update
0033651mantisbtuipublic2024-02-20 16:58
ReporterAlkante Assigned Todregad
PrioritylowSeveritytweakReproducibilityalways
Status closedResolutionfixed
Product Version2.26.0
Target Version2.26.1Fixed in Version2.26.1
Summary0033651: Overflowing text issue on sidebar menu
Description

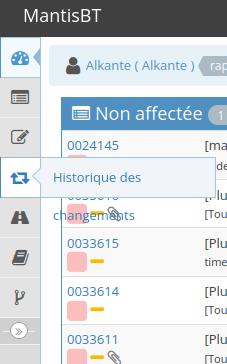

There is a line break out of the box when the text is too long and the menu is collapsed.
e.g. : "Historique des changements" in french (see attached screenshot).

A similar issue also occurs on the expanded sidebar menu, when resolution is < 992px (details in 0033651:0068557).

TagsNo tags attached.
Attached Files

Activities

dregad

dregad

2024-02-14 07:24

developer   ~0068534

PR https://github.com/mantisbt/mantisbt/pull/1967

@Alkante please review and test

Alkante

Alkante

2024-02-14 08:59

reporter   ~0068535

I developed an other solution for this issue, I adapted the width of the box if the text is too long.
I wanted to PR but I think your solution is better.

dregad

dregad

2024-02-14 09:17

developer   ~0068537

Do you want to submit your approach as a separate PR for comparison, or should I merge mine ?

Alkante

Alkante

2024-02-14 10:01

reporter   ~0068538

Yes I'd like to PR my approach. So I'll learn more about PR for later.

dregad

dregad

2024-02-14 10:14

developer   ~0068539

OK, let me know if you need help.
You can reach me here https://matrix.to/#/#mantisbt_mantisbt:gitter.im if you want to chat

Alkante

Alkante

2024-02-16 09:08

reporter   ~0068548

PR https://github.com/mantisbt/mantisbt/pull/1968

dregad

dregad

2024-02-16 09:43

developer   ~0068549

Last edited: 2024-02-16 09:48

Thanks for the pull request. We now have 2 distinct solutions for the same problem so a decision is needed on which one to implement:

  1. Truncate text if bigger than fixed size menu item box https://github.com/mantisbt/mantisbt/pull/1967
  2. Dynamically Increase menu box width to accept longer text https://github.com/mantisbt/mantisbt/pull/1968

Personally, I visually I like 1 better because all menu items have the same size, but the code is more complex (javascript to add the tooltip when text is truncated), so 2 is an acceptable solution too.

@atrol, @vboctor and anyone else, your opinion is welcome.

diedie2

diedie2

2024-02-16 10:42

reporter   ~0068550

I'd prefer option 2 :-)

atrol

atrol

2024-02-17 16:21

developer   ~0068554

I prefer option 3 :-)
This would be option 2, but remove min-width: 176px;

If option 1 should be preferred, @dregad you would have to fix the JavaScript code.
I don't get the tool tip and see some error in browser console
Uncaught Error: Syntax error, unrecognized expression: ..sidebar.menu-min .nav-list > li > a > .menu-text

dregad

dregad

2024-02-18 06:12

developer   ~0068557

If option 1 should be preferred, @dregad you would have to fix the JavaScript code.
I don't get the tool tip and see some error in browser console
Uncaught Error: Syntax error, unrecognized expression: ..sidebar.menu-min .nav-list > li > a > .menu-text

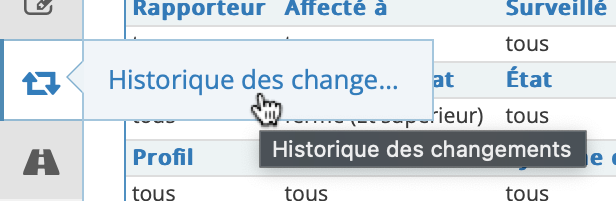

Strange, I'm sure the tooltip was working when I tested (which is confirmed by the screenshot in my PR https://github.com/mantisbt/mantisbt/pull/1967), although I did miss the console error.

In any case, considering there seems to be a consensus for making the menu-text span wider, I'll just cancel my PR and won't bother with fixing that.

I prefer option 3 :-)
This would be option 2, but remove min-width: 176px;

That's a good suggestion, I like it.

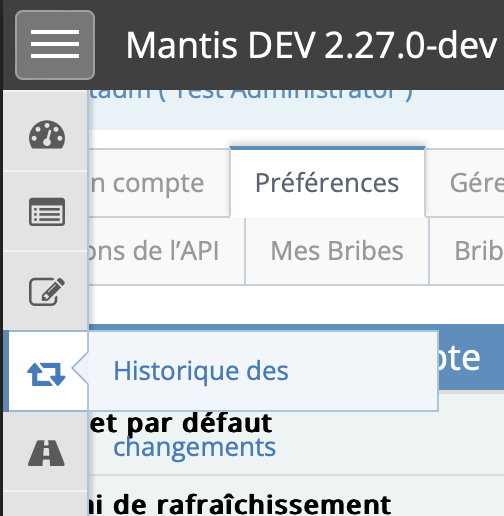

I just noticed when testing @Alkante's PR https://github.com/mantisbt/mantisbt/pull/1968 that it does not completely fix the problem, which is still present in responsive mode with smaller resolutions.

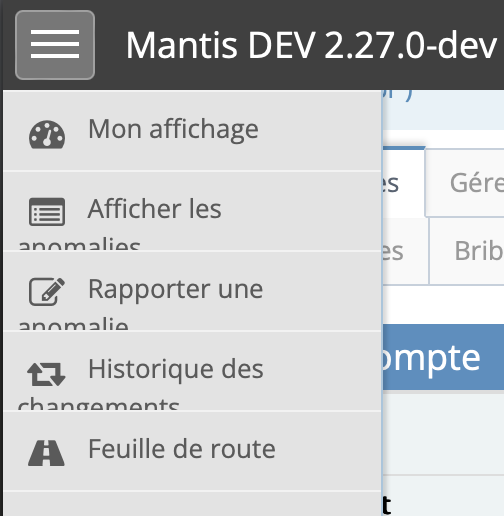

Slightly different but related, the text also overflows in responsive mode with an expanded sidebar.

dregad

dregad

2024-02-18 07:06

developer   ~0068558

New PR https://github.com/mantisbt/mantisbt/pull/1969 implementing option 3 + additional fix mentioned in 0033651:0068557

Related Changesets

MantisBT: master-2.26 e50fb20d

2024-02-18 11:31

dregad


Details Diff
Fix overflowing text in sidebar menu

Addresses 2 distinct issues:
- collapsed menu
- expanded menu with resolutions < 992px

Fixes 0033651, PR https://github.com/mantisbt/mantisbt/pull/1969
Affected Issues
0033651
mod - css/ace-mantis.css Diff File
