0034608: Workflow Graph display is difficult to read

ID	Project	Category	View Status	Date Submitted	Last Update

0034608	mantisbt	administration	public	2024-09-02 12:31	2024-09-07 10:43

Reporter	dregad	Assigned To	dregad
Priority	normal	Severity	minor	Reproducibility	always
Status	resolved	Resolution	fixed
Target Version	2.27.0	Fixed in Version	2.27.0

Summary	0034608: Workflow Graph display is difficult to read

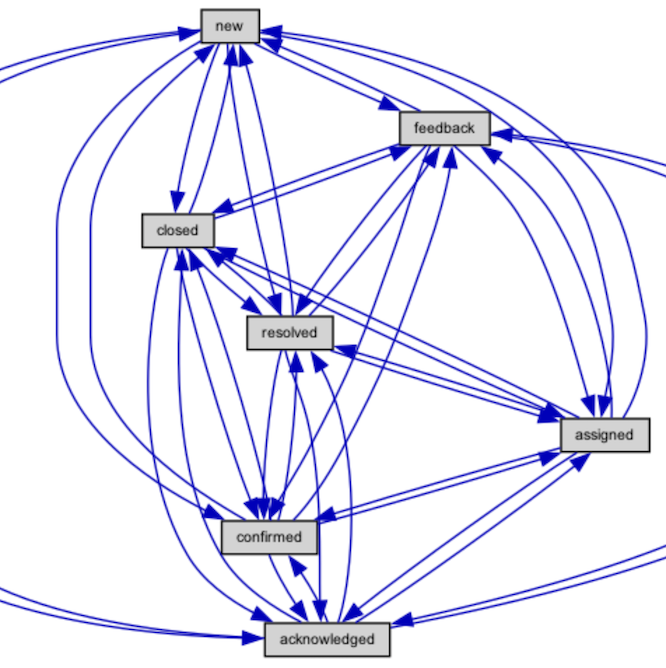

Description	Depending on the workflow's complexity (number of status and transitions between them), the graph generated by workflow_graph_img.php can get messy and difficult to read.
Tags	No tags attached.
Attached Files	image.png (251,052 bytes) image.png (251,052 bytes)

MantisBT: master 6e77c738 2023-09-29 13:01 dregad Details Diff	Use circo graph type for Workflow transitions The circular representation generated by circo is much easier to read than dot's output which looks like a plate of spaghetti. Fixes 0034608	Affected Issues 0034608
	mod - core/graphviz_api.php	Diff File
	mod - workflow_graph_img.php	Diff File

dregad 2024-09-02 18:47 developer ~0069152	PR https://github.com/mantisbt/mantisbt/pull/2024
