0036858: Improving Workflow Graph display

ID	Project	Category	View Status	Date Submitted	Last Update
0036858	mantisbt	ui	public	2026-01-29 10:53	2026-01-30 02:59

Reporter	raspopov	Assigned To	community
Priority	normal	Severity	minor	Reproducibility	always
Status	assigned	Resolution	open
Product Version	2.28.0
Target Version	2.29.0

Summary	0036858: Improving Workflow Graph display
Description	The current view looks like a plate of spaghetti. In my humble opinion, double arrows could improve the appearance of the graph.
Tags	No tags attached.

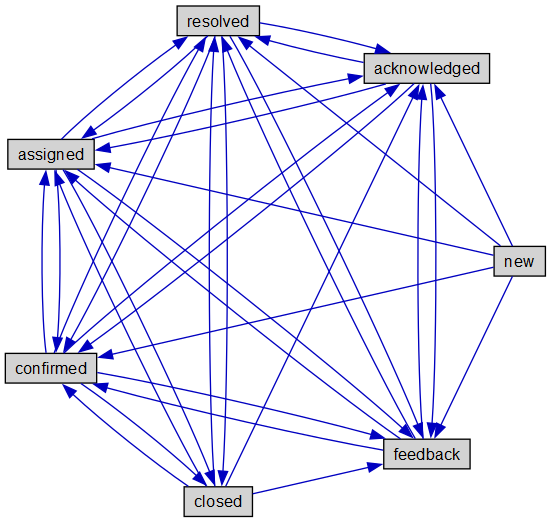

Attached Files	current_workflow_graph.png (61,607 bytes) current_workflow_graph.png (61,607 bytes)

MantisBT: master d6ca719b 2026-01-29 11:03 raspopov Details Diff	Improve Workflow Graph display. - The two arrows pointing in opposite directions have been replaced with one double arrow. - Background transparency was added. - The workflow states are each colored in their own color. Fixes 0036858.		Affected Issues 0036858
	mod - workflow_graph_img.php		Diff File

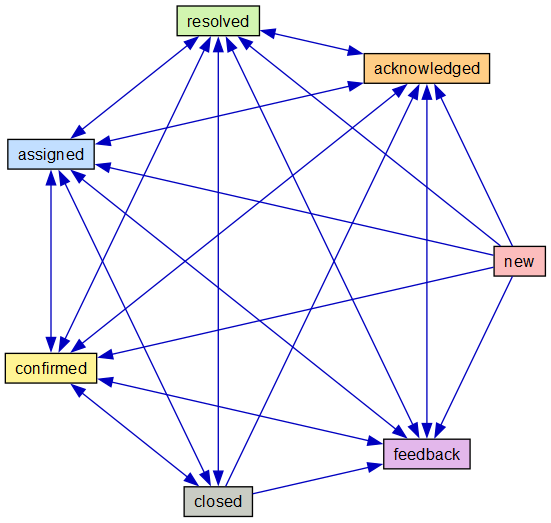

raspopov 2026-01-29 11:06 reporter ~0070742	PR: https://github.com/mantisbt/mantisbt/pull/2174 This is a new and beautiful look for the graph: new_workflow_graph.png (40,190 bytes) new_workflow_graph.png (40,190 bytes)
