IDProjectCategoryView StatusDate SubmittedLast Update
0004969mantisbtfeaturepublic2004-12-13 06:362009-06-26 12:00
Reporterguilherme ferro Assigned Tothraxisp
PrioritynormalSeverityfeatureReproducibilityN/A
Status closedResolutionno change required
Product Version0.18.2
Summary0004969: Summary by date
Description

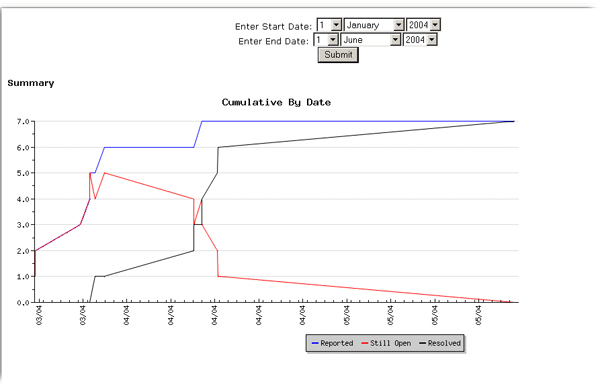

While viewing summary there should be a field to select the start and end date do display the summary of the bugs. The criteria for wich "bug date" to consider in this refined summary need a litle further thinking. (see add info)

Thanks in further for any new ideas.

Additional Information

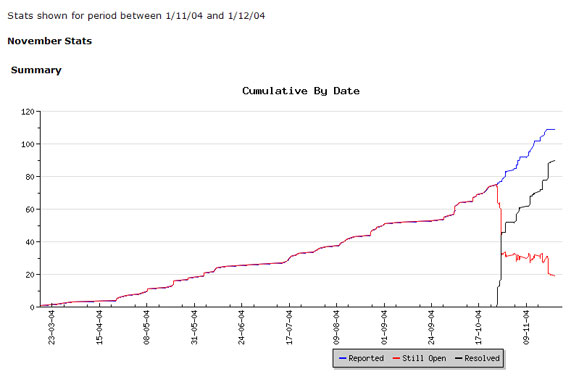

In my application it´s necessary to view monthly statistics. In principle it´s needed only for closed bugs, but a solution for solved, opened, new, etc. is also welcome.

I was thinking about a rule that takes into account the transition for bug closed (in bug history) or someting.

In fact, for past summaries it´s relevant only the closed bugs for performance issues about developers (issues that were closed in the selected date).

TagsNo tags attached.
Attached Files
custom_graph_api.txt (36,600 bytes)
<?php


	if ( ON == config_get( 'use_jpgraph' ) ) {
		$t_jpgraph_path = config_get( 'jpgraph_path' );

		require_once( $t_jpgraph_path.'jpgraph.php' );
		require_once( $t_jpgraph_path.'jpgraph_line.php' );
		require_once( $t_jpgraph_path.'jpgraph_bar.php' );
		require_once( $t_jpgraph_path.'jpgraph_pie.php' );
		require_once( $t_jpgraph_path.'jpgraph_pie3d.php' );
		require_once( $t_jpgraph_path.'jpgraph_canvas.php' );
	}

	### Graph API ###

	# --------------------
	# Function which gives the absolute values according to the status (opened/closed/resolved)
	function enum_bug_group( $p_enum_string, $p_enum) {
		global $g_mantis_bug_table, $enum_name, $enum_name_count;
		#these vars are set global so that the other functions can use them
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;

		$enum_name			= null;
		$enum_name_count	= null;

		$t_project_id = helper_get_current_project();


		#@@@
		$custom_start_date =  $_GET['startyear'].'-'.$_GET['startmonth'].'-'.$_GET['startday'];
		$custom_end_date =  $_GET['endyear'].'-'.$_GET['endmonth'].'-'.$_GET['endday'];

		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();


		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ( $i=0; $i < $enum_count; $i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			if ( ALL_PROJECTS == $t_project_id ) {
				# Only projects to which the user have access
				$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
				$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
				$specific_where = " AND project_id='$t_project_id'";
			}

			# Calculates the number of bugs with $p_enum and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result = db_query( $query );
			$enum_name_count[]= db_result( $result, 0);

			$t_res_val = config_get( 'bug_resolved_status_threshold' );
			$t_clo_val = CLOSED;

			# Calculates the number of bugs opened and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status<'$t_res_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			$open_bug_count[] = db_result( $result2, 0, 0);

			# Calculates the number of bugs closed and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status='$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );

			$closed_bug_count[] = db_result( $result2, 0, 0);

			# Calculates the number of bugs resolved and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status>='$t_res_val'  AND
						status<'$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			$resolved_bug_count[] = db_result( $result2, 0, 0);
		} ### end for
	}


	# --------------------
	# Function which displays the charts using the absolute values according to the status (opened/closed/resolved)
	function graph_group( $p_title='' ){
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count,$height;

		error_check( $open_bug_count + $closed_bug_count + $resolved_bug_count, $p_title );

		#defines margin according to height
		$graph = new Graph(350,400);
		$graph->img->SetMargin(35,35,35,$height);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->legend->Pos(0.05, 0.08);

		$graph->yaxis->scale->ticks->SetDirection(-1);
		$graph->yscale->SetGrace(10);

		#adds on the same graph
		$tot = new LinePlot($enum_name_count);
        $tot->SetColor('black');
        $tot->SetWeight(6);
        $tot->mark->SetType(MARK_DIAMOND);

		$tot->SetLegend( lang_get( 'legend_still_open' ) );
		$graph->Add($tot);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$p1->SetLegend( lang_get( 'legend_opened' ) );

		$p2 = new BarPlot($closed_bug_count);
		$p2->SetFillColor('blue');
		$p2->SetWidth(0.8);
		$p2->SetLegend( lang_get( 'legend_closed' ) );

		$p3 = new BarPlot($resolved_bug_count);
		$p3->SetFillColor('red');
		$p3->SetWidth(0.8);
		$p3->SetLegend( lang_get( 'legend_resolved' ) );

	    $gbplot = new GroupBarPlot(array($p1,$p2,$p3));
        $graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	# Function which finds the % according to the status
	function enum_bug_group_pct( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		#calculation per status
		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_clo_val = CLOSED;

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status<'$t_res_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$total_open = db_result( $result, 0);


		# Bugs closed
		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status='$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$total_close= db_result( $result, 0);


		# Bugs resolved
		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status>='$t_res_val' AND
					status<'$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$total_resolved = db_result( $result, 0);


		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result = db_query( $query );
			$t_enum_count[]= db_result( $result, 0 );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status<'$t_res_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_open ) {
				$open_bug_count[] = db_result( $result2, 0, 0) / $total_open * 100;
			}else{
				$open_bug_count[] = 0;
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status='$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_close ) {
				$closed_bug_count[] = db_result( $result2, 0, 0) / $total_close * 100;
			}else{
				$closed_bug_count[] = 0;
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status>='$t_res_val' AND
						status<'$t_clo_val' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_resolved ) {
				$resolved_bug_count[] = db_result( $result2, 0, 0) / $total_resolved * 100;
			}else{
				$resolved_bug_count[] = 0;
			}

		} ### end for
	}

	# --------------------
	# Function that displays charts in % according to the status
	function graph_group_pct( $p_title='' ){
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;

		error_check( $open_bug_count + $closed_bug_count + $resolved_bug_count, $p_title );

		$graph = new Graph(250,400);
		$graph->img->SetMargin(35,35,35,150);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);

		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$p1->SetLegend( lang_get( 'legend_opened' ) );

		$p2 = new BarPlot($closed_bug_count);
		$p2->SetFillColor('blue');
		$p2->SetWidth(0.8);
		$p2->SetLegend( lang_get( 'legend_closed' ) );

		$p3 = new BarPlot($resolved_bug_count);
		$p3->SetFillColor('red');
		$p3->SetWidth(0.8);
		$p3->SetLegend( lang_get( 'legend_resolved' ) );

        $gbplot = new GroupBarPlot(array($p1,$p2,$p3));

        $graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	# Function which gets the values in %
	function create_bug_enum_summary_pct( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count, $total;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
	                      FROM $t_bug_table
	                      WHERE $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$total = db_result( $result, 0 );
		if ( 0 == $total ) {
			return;
		}

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;

			$result = db_query( $query );
			$enum_name_count[] = db_result( $result, 0 ) / $total * 100;
		} ### end for
	}

	# --------------------
	# Function that displays pie charts
	function graph_bug_enum_summary_pct( $p_title=''){
		global $enum_name, $enum_name_count, $center, $poshorizontal, $posvertical;

		error_check( $enum_name_count, $p_title );

		if ( 0 == count($enum_name) ) {
			return;
		}
		$graph = new PieGraph(500,350);
		$graph->img->SetMargin(40,40,40,100);
		$graph->title->Set($p_title);

		$graph->SetMarginColor('white');
		$graph->SetFrame(false);

		$graph->legend->Pos($poshorizontal, $posvertical);

		$p1 = new PiePlot3d($enum_name_count);
		$p1->SetTheme('earth');
		#$p1->SetTheme("sand");
		$p1->SetCenter($center);
		$p1->SetAngle(60);
		$p1->SetLegends($enum_name);

		# Label format
		$p1->value->SetFormat('%2.0f');
		$p1->value->Show();

		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	function create_category_summary_pct() {
		global $category_name, $category_bug_count;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_cat_table = config_get( 'mantis_project_category_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (t.project_id='. implode( ' OR t.project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " t.project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
				FROM $t_bug_table as t
				WHERE $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$total = db_result( $result, 0 );
		if ( 0 == $total ) {
			return;
		}

		$query = "SELECT t.category, t.project_id, count(b.id) as bugs
				FROM $t_cat_table as t LEFT JOIN $t_bug_table as b
				ON t.category = b.category AND t.project_id = b.project_id
				WHERE $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date

				GROUP BY project_id, category
				ORDER BY project_id, category";
		$result = db_query( $query );
		$category_count = db_num_rows( $result );

		for ($i=0;$i<$category_count;$i++) {
			$row = db_fetch_array( $result );
			$category_name[] = $row['category'];
			$category_bug_count[] = $row['bugs'] / $total * 100;
		} ### end for
	}

	# --------------------
	# Pie chart which dispays by categories
	function graph_category_summary_pct( $p_title=''){
		global $category_name, $category_bug_count;

		error_check( $category_bug_count, $p_title );

		if ( 0 == count( $category_bug_count) ) {
			return;
		}
		$graph = new PieGraph(600,450);
		$graph->img->SetMargin(40,40,40,100);
		$graph->title->Set($p_title);

		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->legend->Pos(0.10,0.09);

		$p1 = new PiePlot3d($category_bug_count);
		$p1->SetTheme('earth');
		$p1->SetCenter(0.3);
		$p1->SetAngle(60);
		$p1->SetLegends($category_name);
		$p1->SetSize(0.27);

		# Label format
		$p1->value->SetFormat('%2.0f');
		$p1->value->Show();

		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	function create_bug_enum_summary( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode_enum_arr( $t_arr[$i] );
			$c_s[0] = addslashes($t_s[0]);
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			if ( ALL_PROJECTS == $t_project_id ) {
				# Only projects to which the user have access
				$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
				$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
				$specific_where = " AND project_id='$t_project_id'";
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$c_s[0]' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result = db_query( $query );
			$enum_name_count[] = db_result( $result, 0 );
		} # end for
	}

	# --------------------
	function graph_bug_enum_summary( $p_title='' ){
		global $enum_name, $enum_name_count;

		error_check( $enum_name_count, $p_title );

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);

		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($enum_name_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		$graph->Stroke();

	}

	# --------------------
	function create_developer_summary() {
		global $developer_name, $open_bug_count,
				$resolved_bug_count, $total_bug_count;

		$t_project_id = helper_get_current_project();
		$t_user_table = config_get( 'mantis_user_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_clo_val = CLOSED;

		$query = "SELECT handler_id, status
				 FROM $t_bug_table
				 WHERE handler_id != '' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$t_total_handled = db_num_rows( $result );

		$t_handler_arr = array();
		for ( $i = 0; $i < $t_total_handled; $i++ ) {
			$row = db_fetch_array( $result );
			if ( !isset( $t_handler_arr[$row['handler_id']] ) ) {
				$t_handler_arr[$row['handler_id']]['res'] = 0;
				$t_handler_arr[$row['handler_id']]['open'] = 0;
			}
			if ( $row['status'] >= $t_res_val ) {
				$t_handler_arr[$row['handler_id']]['res']++;
			} else {
				$t_handler_arr[$row['handler_id']]['open']++;
			}
		}

		if ( count( $t_handler_arr ) == 0 ) {
			return;
		}

		$t_imploded_handlers = implode( ',', array_keys( $t_handler_arr ) );
		$query = "SELECT id, username
				FROM $t_user_table
				WHERE id IN ($t_imploded_handlers)
				ORDER BY username";
		$result = db_query( $query );
		$user_count = db_num_rows( $result );

		for ($i=0;$i<$user_count;$i++) {
			$row = db_fetch_array( $result );
			extract( $row, EXTR_PREFIX_ALL, 'v' );

			$open_buff = $t_handler_arr[$v_id]['open'];
			$resolved_buff = $t_handler_arr[$v_id]['res'];

			if (($resolved_buff+$open_buff)>0) {
				$open_bug_count[]=$open_buff;
				$resolved_bug_count[]=$resolved_buff;
				$total_bug_count[]=$resolved_buff+$open_buff;
				$developer_name[]=$v_username;
			}
		} # end for
	}

	# --------------------
	function graph_developer_summary( ){
		global $developer_name, $total_bug_count, $open_bug_count, $resolved_bug_count;

		error_check( count($developer_name), lang_get( 'by_developer' ) );

		if ( 0 == count($developer_name) ) {
			return;
		}

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_developer' ) );
		$graph->xaxis->SetTickLabels($developer_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);

		$graph->legend->Pos(0,0.8,'right','top');
		$graph->legend->SetShadow(false);
		$graph->legend->SetFillColor('white');
		$graph->legend->SetLayout(LEGEND_HOR);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('red');
		$p1->SetLegend( lang_get( 'legend_still_open' ) );

		$p2 = new BarPlot($resolved_bug_count);
		$p2->SetFillColor('yellow');
		$p2->SetLegend( lang_get( 'legend_resolved' ) );

		$p3 = new BarPlot($total_bug_count);
		$p3->SetFillColor('blue');
		$p3->SetLegend( lang_get( 'legend_assigned' ) );

		$gbplot =  new GroupBarPlot( array($p1, $p2, $p3));
		$graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		$graph->Stroke();

	}

	# --------------------
	function create_reporter_summary() {
		global $reporter_name, $reporter_count;


		$t_project_id = helper_get_current_project();
		$t_user_table = config_get( 'mantis_user_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$query = "SELECT reporter_id
				 FROM $t_bug_table
				 WHERE id != '' $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
		$result = db_query( $query );
		$t_total_reported = db_num_rows( $result );

		$t_reporter_arr = array();
		for ( $i = 0; $i < $t_total_reported; $i++ ) {
			$row = db_fetch_array( $result );

			if ( isset( $t_reporter_arr[$row['reporter_id']] ) ) {
				$t_reporter_arr[$row['reporter_id']]++;
			} else {
				$t_reporter_arr[$row['reporter_id']] = 1;
			}
		}

		if ( count( $t_reporter_arr ) == 0 ) {
			return;
		}

		$t_imploded_reporters = implode( ',', array_keys( $t_reporter_arr ) );
		$query = "SELECT id, username
				FROM $t_user_table
				WHERE id IN ($t_imploded_reporters)
				ORDER BY username";
		$result = db_query( $query );
		$user_count = db_num_rows( $result );

		for ($i=0;$i<$user_count;$i++) {
			$row = db_fetch_array( $result );
			extract( $row, EXTR_PREFIX_ALL, 'v' );

			if ( $t_reporter_arr[$v_id] > 0){
				$reporter_name[] = $v_username;
				$reporter_count[] = $t_reporter_arr[$v_id];
			}
		} # end for
	}

	# --------------------
	function graph_reporter_summary( ){
		global $reporter_name, $reporter_count;

		error_check( count($reporter_name), lang_get( 'by_reporter' ) );

		if ( 0 == count($reporter_name) ) {
			return;
		}
		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_reporter' ) );
		$graph->xaxis->SetTickLabels($reporter_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($reporter_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);

		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	function create_category_summary() {
		global $category_name, $category_bug_count;

		$t_project_id = helper_get_current_project();
		$t_cat_table = config_get( 'mantis_project_category_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		$query = "SELECT DISTINCT category
				FROM $t_cat_table
				WHERE $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date

				ORDER BY category";
		$result = db_query( $query );
		$category_count = db_num_rows( $result );

		for ($i=0;$i<$category_count;$i++) {
			$row = db_fetch_array( $result );
			$category_name[] = $row['category'];
			$c_category_name = addslashes($category_name[$i]);

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE category='$c_category_name' AND $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date"
					;
			$result2 = db_query( $query );
			$category_bug_count[] = db_result( $result2, 0, 0 );

		} # end for
	}

	# --------------------
	function graph_category_summary(){
		global $category_name, $category_bug_count;

		error_check( $category_bug_count, lang_get( 'by_category' ) );

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_category' ) );
		$graph->xaxis->SetTickLabels($category_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);


		$p1 = new BarPlot($category_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);

		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	function cmp_dates($a, $b){
		if ($a[0] == $b[0]) {
			return 0;
		}
		return ( $a[0] < $b[0] ) ? -1 : 1;
	}

	# --------------------
	function find_date_in_metrics($aDate){
		global $metrics;
		$index = -1;
		for ($i=0;$i<count($metrics);$i++) {
			if ($aDate == $metrics[$i][0]){
				$index = $i;
				break;
			}
		}
		return $index;
	}

	# Cumulative By Date (days) Graph in Advanced Summary
	function create_cumulative_bydate(){
		global $metrics;

		$t_clo_val = CLOSED;
		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_bug_table = config_get( 'mantis_bug_table' );

		$t_project_id = helper_get_current_project();
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		# Get all the submitted dates
		$query = "SELECT date_submitted
				FROM $t_bug_table
				WHERE $specific_where
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date

				ORDER BY date_submitted";
		$result = db_query( $query );
		$bug_count = db_num_rows( $result );

		for ($i=0;$i<$bug_count;$i++) {
			$row = db_fetch_array( $result );
 			$t_date = db_unixtimestamp( $row['date_submitted'] );

			if ( isset( $metrics[$t_date] ) ){
				$metrics[$t_date][0]++;
			} else {
				$metrics[$t_date] = array( 1, 0, 0 );
			}
		}

		### Get all the resolved dates
		$query = "SELECT last_updated
			FROM $t_bug_table
			WHERE $specific_where AND
			status >='$t_res_val'
					AND `last_updated` >= $custom_start_date AND `last_updated` < $custom_end_date

			ORDER BY last_updated";
		$result = db_query( $query );
		$bug_count = db_num_rows( $result );

		for ($i=0;$i<$bug_count;$i++) {
			$row = db_fetch_array( $result );
			$t_date = db_unixtimestamp( $row['last_updated'] );
			if ( isset( $metrics[$t_date] ) ){
				$metrics[$t_date][1]++;
			} else {
				$metrics[$t_date] = array( 0, 1, 0 );
			}
		}

		ksort($metrics);

		$metrics_count = count($metrics);
		$t_last_opened = 0;
		$t_last_resolved = 0;
		foreach ($metrics as $i=>$vals) {
			$metrics[$i][0] = $metrics[$i][0] + $t_last_opened;
			$metrics[$i][1] = $metrics[$i][1] + $t_last_resolved;
			$metrics[$i][2] = $metrics[$i][0] - $metrics[$i][1];
		  $t_last_opened = $metrics[$i][0];
			$t_last_resolved = $metrics[$i][1];
		}
	}

	function graph_date_format ($p_date) {
		return strftime( "%m/%y", $p_date );
	}

	# --------------------
	function graph_cumulative_bydate(){
		global $metrics;

		error_check( count($metrics), lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		if ( 0 == count($metrics) ) {
			return;
		}
		foreach ($metrics as $i=>$vals) {
			if ( $i > 0 ) {
				$plot_date[] = $i;
				$reported_plot[] = $metrics[$i][0];
				$resolved_plot[] = $metrics[$i][1];
				$still_open_plot[] = $metrics[$i][2];
			}
		}

		## Graph Dimensions
		$graph = new Graph(800,480);
		## Sets Coords of where the graph will appear in the PHP page
		$graph->img->SetMargin(40,40,40,170);
		## Improves the clarity of the plot by the anti-aliasing alogorithm
		$graph->img->SetAntiAliasing();
		## Sets scale to X-axis = Linear and Y-axis = Linear   (text and log are other options)
		$graph->SetScale('linlin');
		## Sets BG colour of PHP page
		$graph->SetMarginColor('white');
		## Border of PHP frame flag
		$graph->SetFrame(false);

		## Title of Graph from Strings_api.php
		$graph->title->Set( lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		## Specify Position of Legend (X-axis = 0-1, Y-axis = 0-1, Start from Horizontal, Vertical positions)
		$graph->legend->Pos(0.15,0.8,'right','bottom');
		## Shadow for Legend flag
		$graph->legend->SetShadow(true);
		## BG colour for Legend
		$graph->legend->SetFillColor('#CCCCCC');
		## Layout of legent HOR or VER
		$graph->legend->SetLayout(LEGEND_HOR);

		## Whether the scale ticks are shown within the graph (1) or outside the graph (-1)
		$graph->yaxis->scale->ticks->SetDirection(-1);

		## Hides the X-axis
#		$graph->xaxis->Hide();
		# Labels vertically is angle is 90 or horizontal is 0
		$graph->xaxis->SetLabelAngle(90);
		## Sets the Label format as specificed in the 'graph_date_format' subfunction
		$graph->xaxis->SetLabelFormatCallback('graph_date_format');

		## Create plot of reported bugs Vs Date, in Blue, add Legend from strings_english.txt and add to graph
		$p1 = new LinePlot($reported_plot, $plot_date);
		$p1->SetColor('blue');
		$p1->SetCenter();
		$p1->SetLegend( lang_get( 'legend_reported' ) );
		$graph->Add($p1);

		$p3 = new LinePlot($still_open_plot, $plot_date);
		$p3->SetColor('red');
		$p3->SetCenter();
		$p3->SetLegend( lang_get( 'legend_still_open' ) );
		$graph->Add($p3);

		$p2 = new LinePlot($resolved_plot, $plot_date);
		$p2->SetColor('black');
		$p2->SetCenter();
		$p2->SetLegend( lang_get( 'legend_resolved' ) );
		$graph->Add($p2);

		## Adds subheading showing queries if the show_queries_count flag is turned on
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		# Send graph to browser
		$graph->Stroke();
	}

	## Inserted Function to give values of bugs within a certain period
	function custom_cumulative_graph ( $p_enum_string, $p_enum ) {
		global $g_mantis_bug_table, $enum_name, $enum_name_count;

		# Get the Project chosen in the Project Menu Bar and the Bug Table Name, and the current User ID
		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();


		$enum_name			= null;
		$enum_name_count	= null;

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ( $i=0; $i < $enum_count; $i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			# If chosen is All Projects then only display the projects that the current user has rights to
			if ( ALL_PROJECTS == $t_project_id ) {
					# Only projects to which the user have access
					$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
					$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
					$specific_where = " project_id='$t_project_id'";
			}

			# Calculates the number of bugs in the project selected and and puts the results in a table
			$sql = 'SELECT COUNT( * ) '
			. ' FROM `mantis_bug_table` '
			. ' WHERE `project_id` = \'7\' AND `last_updated` >= \'2004-10-01\' AND `last_updated` < \'2004-10-31\' AND `status` = \'80\'';
			$results = db_query( $query );
			$bug_count[] = db_result( $results);

		}
	}

	## Custom Graph Draw the Graph
	function custom_graph_cumulative_bydate(){
		global $bug_count;

		error_check( $bug_count, lang_get( 'cumulative' ) . ' - ' . lang_get( 'by_date' ) );

		if ( 0 == $bug_count ) {
			return;
		}


		## Graph Dimensions
		$graph = new Graph(800,480);
		## Sets Coords of where the graph will appear in the PHP page
		$graph->img->SetMargin(40,40,40,170);
		## Improves the clarity of the plot by the anti-aliasing alogorithm
		$graph->img->SetAntiAliasing();
		## Sets scale to X-axis = Linear and Y-axis = Linear   (text and log are other options)
		$graph->SetScale('linlin');
		## Sets BG colour of PHP page
		$graph->SetMarginColor('white');
		## Border of PHP frame flag
		$graph->SetFrame(false);

		## Title of Graph from Strings_api.php
		$graph->title->Set( lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		## Specify Position of Legend (X-axis = 0-1, Y-axis = 0-1, Start from Horizontal, Vertical positions)
		$graph->legend->Pos(0.15,0.8,'right','bottom');
		## Shadow for Legend flag
		$graph->legend->SetShadow(true);
		## BG colour for Legend
		$graph->legend->SetFillColor('#CCCCCC');
		## Layout of legent HOR or VER
		$graph->legend->SetLayout(LEGEND_HOR);

		## Whether the scale ticks are shown within the graph (1) or outside the graph (-1)
		$graph->yaxis->scale->ticks->SetDirection(-1);

		## Hides the X-axis
#		$graph->xaxis->Hide();
		# Labels vertically is angle is 90 or horizontal is 0
		$graph->xaxis->SetLabelAngle(90);
		## Sets the Label format as specificed in the 'graph_date_format' subfunction
		$graph->xaxis->SetLabelFormatCallback('graph_date_format');

		## Create plot of reported bugs Vs Date, in Blue, add Legend from strings_english.txt and add to graph
		$p1 = new LinePlot($sql, $plot_date);
		$p1->SetColor('blue');
		$p1->SetCenter();
		$p1->SetLegend( lang_get( 'custom_legend_modified' ) );
		$graph->Add($p1);


		## Adds subheading showing queries if the show_queries_count flag is turned on
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		# Send graph to browser
		$graph->Stroke();
	}

	# ----------------------------------------------------
	#
	# Check that there is enough data to create graph
	#
	# ----------------------------------------------------
	function error_check( $bug_count, $title ) {

		if ( 0 == $bug_count ) {
			$graph = new CanvasGraph(300,380);

			$txt = new Text( lang_get( 'not_enough_data' ), 150, 100);
			$txt->Align("center","center","center");
			$graph->title->Set( $title );
			$graph->AddText($txt);
			$graph->Stroke();
			die();
		}
	}
?>
custom_graph_api.txt (36,600 bytes)
custom_graph_api_harcodedDates.txt (36,380 bytes)
<?php


	if ( ON == config_get( 'use_jpgraph' ) ) {
		$t_jpgraph_path = config_get( 'jpgraph_path' );

		require_once( $t_jpgraph_path.'jpgraph.php' );
		require_once( $t_jpgraph_path.'jpgraph_line.php' );
		require_once( $t_jpgraph_path.'jpgraph_bar.php' );
		require_once( $t_jpgraph_path.'jpgraph_pie.php' );
		require_once( $t_jpgraph_path.'jpgraph_pie3d.php' );
		require_once( $t_jpgraph_path.'jpgraph_canvas.php' );
	}

	### Graph API ###

	# --------------------
	# Function which gives the absolute values according to the status (opened/closed/resolved)
	function enum_bug_group( $p_enum_string, $p_enum) {
		global $g_mantis_bug_table, $enum_name, $enum_name_count;
		#these vars are set global so that the other functions can use them
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;

		$enum_name			= null;
		$enum_name_count	= null;

		$t_project_id = helper_get_current_project();


		#@@@
		$custom_start_date =  $_GET['startyear'].'-'.$_GET['startmonth'].'-'.$_GET['startday'];
		$custom_end_date =  $_GET['endyear'].'-'.$_GET['endmonth'].'-'.$_GET['endday'];

		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();


		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ( $i=0; $i < $enum_count; $i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			if ( ALL_PROJECTS == $t_project_id ) {
				# Only projects to which the user have access
				$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
				$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
				$specific_where = " AND project_id='$t_project_id'";
			}

			# Calculates the number of bugs with $p_enum and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result = db_query( $query );
			$enum_name_count[]= db_result( $result, 0);

			$t_res_val = config_get( 'bug_resolved_status_threshold' );
			$t_clo_val = CLOSED;

			# Calculates the number of bugs opened and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status<'$t_res_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			$open_bug_count[] = db_result( $result2, 0, 0);

			# Calculates the number of bugs closed and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status='$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );

			$closed_bug_count[] = db_result( $result2, 0, 0);

			# Calculates the number of bugs resolved and puts the results in a table
			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status>='$t_res_val'  AND
						status<'$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			$resolved_bug_count[] = db_result( $result2, 0, 0);
		} ### end for
	}


	# --------------------
	# Function which displays the charts using the absolute values according to the status (opened/closed/resolved)
	function graph_group( $p_title='' ){
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count,$height;

		error_check( $open_bug_count + $closed_bug_count + $resolved_bug_count, $p_title );

		#defines margin according to height
		$graph = new Graph(350,400);
		$graph->img->SetMargin(35,35,35,$height);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->legend->Pos(0.05, 0.08);

		$graph->yaxis->scale->ticks->SetDirection(-1);
		$graph->yscale->SetGrace(10);

		#adds on the same graph
		$tot = new LinePlot($enum_name_count);
        $tot->SetColor('black');
        $tot->SetWeight(6);
        $tot->mark->SetType(MARK_DIAMOND);

		$tot->SetLegend( lang_get( 'legend_still_open' ) );
		$graph->Add($tot);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$p1->SetLegend( lang_get( 'legend_opened' ) );

		$p2 = new BarPlot($closed_bug_count);
		$p2->SetFillColor('blue');
		$p2->SetWidth(0.8);
		$p2->SetLegend( lang_get( 'legend_closed' ) );

		$p3 = new BarPlot($resolved_bug_count);
		$p3->SetFillColor('red');
		$p3->SetWidth(0.8);
		$p3->SetLegend( lang_get( 'legend_resolved' ) );

	    $gbplot = new GroupBarPlot(array($p1,$p2,$p3));
        $graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	# Function which finds the % according to the status
	function enum_bug_group_pct( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		#calculation per status
		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_clo_val = CLOSED;

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status<'$t_res_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$total_open = db_result( $result, 0);


		# Bugs closed
		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status='$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$total_close= db_result( $result, 0);


		# Bugs resolved
		$query = "SELECT COUNT(*)
				FROM $t_bug_table
				WHERE   status>='$t_res_val' AND
					status<'$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$total_resolved = db_result( $result, 0);


		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result = db_query( $query );
			$t_enum_count[]= db_result( $result, 0 );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status<'$t_res_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_open ) {
				$open_bug_count[] = db_result( $result2, 0, 0) / $total_open * 100;
			}else{
				$open_bug_count[] = 0;
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status='$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_close ) {
				$closed_bug_count[] = db_result( $result2, 0, 0) / $total_close * 100;
			}else{
				$closed_bug_count[] = 0;
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND
						status>='$t_res_val' AND
						status<'$t_clo_val' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			if ( 0 < $total_resolved ) {
				$resolved_bug_count[] = db_result( $result2, 0, 0) / $total_resolved * 100;
			}else{
				$resolved_bug_count[] = 0;
			}

		} ### end for
	}

	# --------------------
	# Function that displays charts in % according to the status
	function graph_group_pct( $p_title='' ){
		global $enum_name, $enum_name_count;
		global $open_bug_count, $closed_bug_count, $resolved_bug_count;

		error_check( $open_bug_count + $closed_bug_count + $resolved_bug_count, $p_title );

		$graph = new Graph(250,400);
		$graph->img->SetMargin(35,35,35,150);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);

		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$p1->SetLegend( lang_get( 'legend_opened' ) );

		$p2 = new BarPlot($closed_bug_count);
		$p2->SetFillColor('blue');
		$p2->SetWidth(0.8);
		$p2->SetLegend( lang_get( 'legend_closed' ) );

		$p3 = new BarPlot($resolved_bug_count);
		$p3->SetFillColor('red');
		$p3->SetWidth(0.8);
		$p3->SetLegend( lang_get( 'legend_resolved' ) );

        $gbplot = new GroupBarPlot(array($p1,$p2,$p3));

        $graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	# Function which gets the values in %
	function create_bug_enum_summary_pct( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count, $total;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
	                      FROM $t_bug_table
	                      WHERE $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$total = db_result( $result, 0 );
		if ( 0 == $total ) {
			return;
		}

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$t_s[0]' AND $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;

			$result = db_query( $query );
			$enum_name_count[] = db_result( $result, 0 ) / $total * 100;
		} ### end for
	}

	# --------------------
	# Function that displays pie charts
	function graph_bug_enum_summary_pct( $p_title=''){
		global $enum_name, $enum_name_count, $center, $poshorizontal, $posvertical;

		error_check( $enum_name_count, $p_title );

		if ( 0 == count($enum_name) ) {
			return;
		}
		$graph = new PieGraph(500,350);
		$graph->img->SetMargin(40,40,40,100);
		$graph->title->Set($p_title);

		$graph->SetMarginColor('white');
		$graph->SetFrame(false);

		$graph->legend->Pos($poshorizontal, $posvertical);

		$p1 = new PiePlot3d($enum_name_count);
		$p1->SetTheme('earth');
		#$p1->SetTheme("sand");
		$p1->SetCenter($center);
		$p1->SetAngle(60);
		$p1->SetLegends($enum_name);

		# Label format
		$p1->value->SetFormat('%2.0f');
		$p1->value->Show();

		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	function create_category_summary_pct() {
		global $category_name, $category_bug_count;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_cat_table = config_get( 'mantis_project_category_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (t.project_id='. implode( ' OR t.project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " t.project_id='$t_project_id'";
		}

		$query = "SELECT COUNT(*)
				FROM $t_bug_table as t
				WHERE $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$total = db_result( $result, 0 );
		if ( 0 == $total ) {
			return;
		}

		$query = "SELECT t.category, t.project_id, count(b.id) as bugs
				FROM $t_cat_table as t LEFT JOIN $t_bug_table as b
				ON t.category = b.category AND t.project_id = b.project_id
				WHERE $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'

				GROUP BY project_id, category
				ORDER BY project_id, category";
		$result = db_query( $query );
		$category_count = db_num_rows( $result );

		for ($i=0;$i<$category_count;$i++) {
			$row = db_fetch_array( $result );
			$category_name[] = $row['category'];
			$category_bug_count[] = $row['bugs'] / $total * 100;
		} ### end for
	}

	# --------------------
	# Pie chart which dispays by categories
	function graph_category_summary_pct( $p_title=''){
		global $category_name, $category_bug_count;

		error_check( $category_bug_count, $p_title );

		if ( 0 == count( $category_bug_count) ) {
			return;
		}
		$graph = new PieGraph(600,450);
		$graph->img->SetMargin(40,40,40,100);
		$graph->title->Set($p_title);

		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->legend->Pos(0.10,0.09);

		$p1 = new PiePlot3d($category_bug_count);
		$p1->SetTheme('earth');
		$p1->SetCenter(0.3);
		$p1->SetAngle(60);
		$p1->SetLegends($category_name);
		$p1->SetSize(0.27);

		# Label format
		$p1->value->SetFormat('%2.0f');
		$p1->value->Show();

		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	function create_bug_enum_summary( $p_enum_string, $p_enum ) {
		global $enum_name, $enum_name_count;
		$enum_name = Null;
		$enum_name_count = Null;

		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ($i=0;$i<$enum_count;$i++) {
			$t_s = explode_enum_arr( $t_arr[$i] );
			$c_s[0] = addslashes($t_s[0]);
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			if ( ALL_PROJECTS == $t_project_id ) {
				# Only projects to which the user have access
				$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
				$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
				$specific_where = " AND project_id='$t_project_id'";
			}

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE $p_enum='$c_s[0]' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result = db_query( $query );
			$enum_name_count[] = db_result( $result, 0 );
		} # end for
	}

	# --------------------
	function graph_bug_enum_summary( $p_title='' ){
		global $enum_name, $enum_name_count;

		error_check( $enum_name_count, $p_title );

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set($p_title);
		$graph->xaxis->SetTickLabels($enum_name);
		$graph->xaxis->SetLabelAngle(90);

		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($enum_name_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		$graph->Stroke();

	}

	# --------------------
	function create_developer_summary() {
		global $developer_name, $open_bug_count,
				$resolved_bug_count, $total_bug_count;

		$t_project_id = helper_get_current_project();
		$t_user_table = config_get( 'mantis_user_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_clo_val = CLOSED;

		$query = "SELECT handler_id, status
				 FROM $t_bug_table
				 WHERE handler_id != '' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$t_total_handled = db_num_rows( $result );

		$t_handler_arr = array();
		for ( $i = 0; $i < $t_total_handled; $i++ ) {
			$row = db_fetch_array( $result );
			if ( !isset( $t_handler_arr[$row['handler_id']] ) ) {
				$t_handler_arr[$row['handler_id']]['res'] = 0;
				$t_handler_arr[$row['handler_id']]['open'] = 0;
			}
			if ( $row['status'] >= $t_res_val ) {
				$t_handler_arr[$row['handler_id']]['res']++;
			} else {
				$t_handler_arr[$row['handler_id']]['open']++;
			}
		}

		if ( count( $t_handler_arr ) == 0 ) {
			return;
		}

		$t_imploded_handlers = implode( ',', array_keys( $t_handler_arr ) );
		$query = "SELECT id, username
				FROM $t_user_table
				WHERE id IN ($t_imploded_handlers)
				ORDER BY username";
		$result = db_query( $query );
		$user_count = db_num_rows( $result );

		for ($i=0;$i<$user_count;$i++) {
			$row = db_fetch_array( $result );
			extract( $row, EXTR_PREFIX_ALL, 'v' );

			$open_buff = $t_handler_arr[$v_id]['open'];
			$resolved_buff = $t_handler_arr[$v_id]['res'];

			if (($resolved_buff+$open_buff)>0) {
				$open_bug_count[]=$open_buff;
				$resolved_bug_count[]=$resolved_buff;
				$total_bug_count[]=$resolved_buff+$open_buff;
				$developer_name[]=$v_username;
			}
		} # end for
	}

	# --------------------
	function graph_developer_summary( ){
		global $developer_name, $total_bug_count, $open_bug_count, $resolved_bug_count;

		error_check( count($developer_name), lang_get( 'by_developer' ) );

		if ( 0 == count($developer_name) ) {
			return;
		}

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_developer' ) );
		$graph->xaxis->SetTickLabels($developer_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);

		$graph->legend->Pos(0,0.8,'right','top');
		$graph->legend->SetShadow(false);
		$graph->legend->SetFillColor('white');
		$graph->legend->SetLayout(LEGEND_HOR);

		$p1 = new BarPlot($open_bug_count);
		$p1->SetFillColor('red');
		$p1->SetLegend( lang_get( 'legend_still_open' ) );

		$p2 = new BarPlot($resolved_bug_count);
		$p2->SetFillColor('yellow');
		$p2->SetLegend( lang_get( 'legend_resolved' ) );

		$p3 = new BarPlot($total_bug_count);
		$p3->SetFillColor('blue');
		$p3->SetLegend( lang_get( 'legend_assigned' ) );

		$gbplot =  new GroupBarPlot( array($p1, $p2, $p3));
		$graph->Add($gbplot);
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		$graph->Stroke();

	}

	# --------------------
	function create_reporter_summary() {
		global $reporter_name, $reporter_count;


		$t_project_id = helper_get_current_project();
		$t_user_table = config_get( 'mantis_user_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' AND (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " AND project_id='$t_project_id'";
		}

		$query = "SELECT reporter_id
				 FROM $t_bug_table
				 WHERE id != '' $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
		$result = db_query( $query );
		$t_total_reported = db_num_rows( $result );

		$t_reporter_arr = array();
		for ( $i = 0; $i < $t_total_reported; $i++ ) {
			$row = db_fetch_array( $result );

			if ( isset( $t_reporter_arr[$row['reporter_id']] ) ) {
				$t_reporter_arr[$row['reporter_id']]++;
			} else {
				$t_reporter_arr[$row['reporter_id']] = 1;
			}
		}

		if ( count( $t_reporter_arr ) == 0 ) {
			return;
		}

		$t_imploded_reporters = implode( ',', array_keys( $t_reporter_arr ) );
		$query = "SELECT id, username
				FROM $t_user_table
				WHERE id IN ($t_imploded_reporters)
				ORDER BY username";
		$result = db_query( $query );
		$user_count = db_num_rows( $result );

		for ($i=0;$i<$user_count;$i++) {
			$row = db_fetch_array( $result );
			extract( $row, EXTR_PREFIX_ALL, 'v' );

			if ( $t_reporter_arr[$v_id] > 0){
				$reporter_name[] = $v_username;
				$reporter_count[] = $t_reporter_arr[$v_id];
			}
		} # end for
	}

	# --------------------
	function graph_reporter_summary( ){
		global $reporter_name, $reporter_count;

		error_check( count($reporter_name), lang_get( 'by_reporter' ) );

		if ( 0 == count($reporter_name) ) {
			return;
		}
		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_reporter' ) );
		$graph->xaxis->SetTickLabels($reporter_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);

		$p1 = new BarPlot($reporter_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);

		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();

	}

	# --------------------
	function create_category_summary() {
		global $category_name, $category_bug_count;

		$t_project_id = helper_get_current_project();
		$t_cat_table = config_get( 'mantis_project_category_table' );
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		$query = "SELECT DISTINCT category
				FROM $t_cat_table
				WHERE $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'

				ORDER BY category";
		$result = db_query( $query );
		$category_count = db_num_rows( $result );

		for ($i=0;$i<$category_count;$i++) {
			$row = db_fetch_array( $result );
			$category_name[] = $row['category'];
			$c_category_name = addslashes($category_name[$i]);

			$query = "SELECT COUNT(*)
					FROM $t_bug_table
					WHERE category='$c_category_name' AND $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'"
					;
			$result2 = db_query( $query );
			$category_bug_count[] = db_result( $result2, 0, 0 );

		} # end for
	}

	# --------------------
	function graph_category_summary(){
		global $category_name, $category_bug_count;

		error_check( $category_bug_count, lang_get( 'by_category' ) );

		$graph = new Graph(300,380);
		$graph->img->SetMargin(40,40,40,170);
		$graph->img->SetAntiAliasing();
		$graph->SetScale('textlin');
		$graph->SetMarginColor('white');
		$graph->SetFrame(false);
		$graph->title->Set( lang_get( 'by_category' ) );
		$graph->xaxis->SetTickLabels($category_name);
		$graph->xaxis->SetLabelAngle(90);
		$graph->yaxis->scale->ticks->SetDirection(-1);


		$p1 = new BarPlot($category_bug_count);
		$p1->SetFillColor('yellow');
		$p1->SetWidth(0.8);
		$graph->Add($p1);

		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}
		$graph->Stroke();
	}

	# --------------------
	function cmp_dates($a, $b){
		if ($a[0] == $b[0]) {
			return 0;
		}
		return ( $a[0] < $b[0] ) ? -1 : 1;
	}

	# --------------------
	function find_date_in_metrics($aDate){
		global $metrics;
		$index = -1;
		for ($i=0;$i<count($metrics);$i++) {
			if ($aDate == $metrics[$i][0]){
				$index = $i;
				break;
			}
		}
		return $index;
	}

	# Cumulative By Date (days) Graph in Advanced Summary
	function create_cumulative_bydate(){
		global $metrics;

		$t_clo_val = CLOSED;
		$t_res_val = config_get( 'bug_resolved_status_threshold' );
		$t_bug_table = config_get( 'mantis_bug_table' );

		$t_project_id = helper_get_current_project();
		$t_user_id = auth_get_current_user_id();

		if ( ALL_PROJECTS == $t_project_id ) {
			# Only projects to which the user have access
			$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
			$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
		} else {
			$specific_where = " project_id='$t_project_id'";
		}

		# Get all the submitted dates
		$query = "SELECT date_submitted
				FROM $t_bug_table
				WHERE $specific_where
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'

				ORDER BY date_submitted";
		$result = db_query( $query );
		$bug_count = db_num_rows( $result );

		for ($i=0;$i<$bug_count;$i++) {
			$row = db_fetch_array( $result );
 			$t_date = db_unixtimestamp( $row['date_submitted'] );

			if ( isset( $metrics[$t_date] ) ){
				$metrics[$t_date][0]++;
			} else {
				$metrics[$t_date] = array( 1, 0, 0 );
			}
		}

		### Get all the resolved dates
		$query = "SELECT last_updated
			FROM $t_bug_table
			WHERE $specific_where AND
			status >='$t_res_val'
					AND `last_updated` >= '2004-01-01' AND `last_updated` < '2004-06-01'

			ORDER BY last_updated";
		$result = db_query( $query );
		$bug_count = db_num_rows( $result );

		for ($i=0;$i<$bug_count;$i++) {
			$row = db_fetch_array( $result );
			$t_date = db_unixtimestamp( $row['last_updated'] );
			if ( isset( $metrics[$t_date] ) ){
				$metrics[$t_date][1]++;
			} else {
				$metrics[$t_date] = array( 0, 1, 0 );
			}
		}

		ksort($metrics);

		$metrics_count = count($metrics);
		$t_last_opened = 0;
		$t_last_resolved = 0;
		foreach ($metrics as $i=>$vals) {
			$metrics[$i][0] = $metrics[$i][0] + $t_last_opened;
			$metrics[$i][1] = $metrics[$i][1] + $t_last_resolved;
			$metrics[$i][2] = $metrics[$i][0] - $metrics[$i][1];
		  $t_last_opened = $metrics[$i][0];
			$t_last_resolved = $metrics[$i][1];
		}
	}

	function graph_date_format ($p_date) {
		return strftime( "%m/%y", $p_date );
	}

	# --------------------
	function graph_cumulative_bydate(){
		global $metrics;

		error_check( count($metrics), lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		if ( 0 == count($metrics) ) {
			return;
		}
		foreach ($metrics as $i=>$vals) {
			if ( $i > 0 ) {
				$plot_date[] = $i;
				$reported_plot[] = $metrics[$i][0];
				$resolved_plot[] = $metrics[$i][1];
				$still_open_plot[] = $metrics[$i][2];
			}
		}

		## Graph Dimensions
		$graph = new Graph(800,480);
		## Sets Coords of where the graph will appear in the PHP page
		$graph->img->SetMargin(40,40,40,170);
		## Improves the clarity of the plot by the anti-aliasing alogorithm
		$graph->img->SetAntiAliasing();
		## Sets scale to X-axis = Linear and Y-axis = Linear   (text and log are other options)
		$graph->SetScale('linlin');
		## Sets BG colour of PHP page
		$graph->SetMarginColor('white');
		## Border of PHP frame flag
		$graph->SetFrame(false);

		## Title of Graph from Strings_api.php
		$graph->title->Set( lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		## Specify Position of Legend (X-axis = 0-1, Y-axis = 0-1, Start from Horizontal, Vertical positions)
		$graph->legend->Pos(0.15,0.8,'right','bottom');
		## Shadow for Legend flag
		$graph->legend->SetShadow(true);
		## BG colour for Legend
		$graph->legend->SetFillColor('#CCCCCC');
		## Layout of legent HOR or VER
		$graph->legend->SetLayout(LEGEND_HOR);

		## Whether the scale ticks are shown within the graph (1) or outside the graph (-1)
		$graph->yaxis->scale->ticks->SetDirection(-1);

		## Hides the X-axis
#		$graph->xaxis->Hide();
		# Labels vertically is angle is 90 or horizontal is 0
		$graph->xaxis->SetLabelAngle(90);
		## Sets the Label format as specificed in the 'graph_date_format' subfunction
		$graph->xaxis->SetLabelFormatCallback('graph_date_format');

		## Create plot of reported bugs Vs Date, in Blue, add Legend from strings_english.txt and add to graph
		$p1 = new LinePlot($reported_plot, $plot_date);
		$p1->SetColor('blue');
		$p1->SetCenter();
		$p1->SetLegend( lang_get( 'legend_reported' ) );
		$graph->Add($p1);

		$p3 = new LinePlot($still_open_plot, $plot_date);
		$p3->SetColor('red');
		$p3->SetCenter();
		$p3->SetLegend( lang_get( 'legend_still_open' ) );
		$graph->Add($p3);

		$p2 = new LinePlot($resolved_plot, $plot_date);
		$p2->SetColor('black');
		$p2->SetCenter();
		$p2->SetLegend( lang_get( 'legend_resolved' ) );
		$graph->Add($p2);

		## Adds subheading showing queries if the show_queries_count flag is turned on
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		# Send graph to browser
		$graph->Stroke();
	}

	## Inserted Function to give values of bugs within a certain period
	function custom_cumulative_graph ( $p_enum_string, $p_enum ) {
		global $g_mantis_bug_table, $enum_name, $enum_name_count;

		# Get the Project chosen in the Project Menu Bar and the Bug Table Name, and the current User ID
		$t_project_id = helper_get_current_project();
		$t_bug_table = config_get( 'mantis_bug_table' );
		$t_user_id = auth_get_current_user_id();


		$enum_name			= null;
		$enum_name_count	= null;

		$t_arr = explode_enum_string( $p_enum_string );
		$enum_count = count( $t_arr );
		for ( $i=0; $i < $enum_count; $i++) {
			$t_s = explode( ':', $t_arr[$i] );
			$enum_name[] = get_enum_to_string( $p_enum_string, $t_s[0] );

			# If chosen is All Projects then only display the projects that the current user has rights to
			if ( ALL_PROJECTS == $t_project_id ) {
					# Only projects to which the user have access
					$t_accessible_projects_array = user_get_accessible_projects( $t_user_id );
					$specific_where = ' (project_id='. implode( ' OR project_id=', $t_accessible_projects_array ).')';
			} else {
					$specific_where = " project_id='$t_project_id'";
			}

			# Calculates the number of bugs in the project selected and and puts the results in a table
			$sql = 'SELECT COUNT( * ) '
			. ' FROM `mantis_bug_table` '
			. ' WHERE `project_id` = \'7\' AND `last_updated` >= \'2004-10-01\' AND `last_updated` < \'2004-10-31\' AND `status` = \'80\'';
			$results = db_query( $query );
			$bug_count[] = db_result( $results);

		}
	}

	## Custom Graph Draw the Graph
	function custom_graph_cumulative_bydate(){
		global $bug_count;

		error_check( $bug_count, lang_get( 'cumulative' ) . ' - ' . lang_get( 'by_date' ) );

		if ( 0 == $bug_count ) {
			return;
		}


		## Graph Dimensions
		$graph = new Graph(800,480);
		## Sets Coords of where the graph will appear in the PHP page
		$graph->img->SetMargin(40,40,40,170);
		## Improves the clarity of the plot by the anti-aliasing alogorithm
		$graph->img->SetAntiAliasing();
		## Sets scale to X-axis = Linear and Y-axis = Linear   (text and log are other options)
		$graph->SetScale('linlin');
		## Sets BG colour of PHP page
		$graph->SetMarginColor('white');
		## Border of PHP frame flag
		$graph->SetFrame(false);

		## Title of Graph from Strings_api.php
		$graph->title->Set( lang_get( 'cumulative' ) . ' ' . lang_get( 'by_date' ) );

		## Specify Position of Legend (X-axis = 0-1, Y-axis = 0-1, Start from Horizontal, Vertical positions)
		$graph->legend->Pos(0.15,0.8,'right','bottom');
		## Shadow for Legend flag
		$graph->legend->SetShadow(true);
		## BG colour for Legend
		$graph->legend->SetFillColor('#CCCCCC');
		## Layout of legent HOR or VER
		$graph->legend->SetLayout(LEGEND_HOR);

		## Whether the scale ticks are shown within the graph (1) or outside the graph (-1)
		$graph->yaxis->scale->ticks->SetDirection(-1);

		## Hides the X-axis
#		$graph->xaxis->Hide();
		# Labels vertically is angle is 90 or horizontal is 0
		$graph->xaxis->SetLabelAngle(90);
		## Sets the Label format as specificed in the 'graph_date_format' subfunction
		$graph->xaxis->SetLabelFormatCallback('graph_date_format');

		## Create plot of reported bugs Vs Date, in Blue, add Legend from strings_english.txt and add to graph
		$p1 = new LinePlot($sql, $plot_date);
		$p1->SetColor('blue');
		$p1->SetCenter();
		$p1->SetLegend( lang_get( 'custom_legend_modified' ) );
		$graph->Add($p1);


		## Adds subheading showing queries if the show_queries_count flag is turned on
		if ( ON == config_get( 'show_queries_count' ) ) {
			$graph->subtitle->Set( db_count_queries() . ' queries (' . db_count_unique_queries() . ' unique)' );
		}

		# Send graph to browser
		$graph->Stroke();
	}

	# ----------------------------------------------------
	#
	# Check that there is enough data to create graph
	#
	# ----------------------------------------------------
	function error_check( $bug_count, $title ) {

		if ( 0 == $bug_count ) {
			$graph = new CanvasGraph(300,380);

			$txt = new Text( lang_get( 'not_enough_data' ), 150, 100);
			$txt->Align("center","center","center");
			$graph->title->Set( $title );
			$graph->AddText($txt);
			$graph->Stroke();
			die();
		}
	}
?>
custom_graph_api_harcodedDates.txt (36,380 bytes)
customizedMantis.zip (23,112 bytes)

Relationships

Relationship GraphDependency Graph
has duplicate 0004684 closedthraxisp Date filter for graphs/summary
has duplicate 0005718 closedgiallu add date-filter in summary page
related to 0003478 closedgiallu summary by date isn't correct

Activities

suhavna

suhavna

2004-12-14 23:03

reporter   ~0008628

I have created a custom_graph_api.php file that does what i want but the variables passed from a simple form don't work in the query.

The result is perfect if the dates are hardcoded in.

See the attachments for the code and the results. I have attached both versions (using a variable name and the exact date).

How can i get this to work with the variable name. I'm sure it's a simple fix.
guilherme ferro

guilherme ferro

2004-12-22 12:48

reporter   ~0008764

Suhavna, thanks for the help.

Unfortunately i could not implement your solution, maybe i didn´t get some requirements....

I have jpgraph working fine but when i replaced my "graph_api.php" with yours no graphs where showed at all.

Is any other config needed? Were do I put the date filter forms?

Thanks!
thraxisp

thraxisp

2004-12-22 13:22

reporter   ~0008765

Your scripts sort the data by the "last_updated" date. This might exclude bugs that were open, but had no action during the period. Was this your intent?
suhavna

suhavna

2004-12-22 18:28

reporter   ~0008769

thraxisp:
I had a look thru the database structure and querying by the 'last_updated' field was the simplest way of getting these graphs to work. Once the page is working if should a simple fix by appending a
" AND 'status' < '80' " to the query.
However i think the graphs are more correct without this extra line as the purpose of these graphs is to query the work done in the queried period.

I would like some help in how to pass the variable from the form to the query though.

Also i have discovered the query for the Cumulative by Date graph results in quite a messy graph. See the attached image for my November Stats. Do you have a suggestion for how this can be remedied to show only the bug_count within the specified dates?

I'm sorry i'm not too experienced in PHP coding. Thanks again.
suhavna

suhavna

2004-12-22 18:31

reporter   ~0008770

SOrry " OR 'status' < 80 " i meant
suhavna

suhavna

2004-12-22 19:23

reporter   ~0008773

Guillame,
In order to have the custom graphs that i have coded you need a few more
files added to your implementation of Mantis, and i've added them to the
attached zip file.

You should replace the custom graph_api.php file with the
original Mantis file. These graphs are additional files and don't replace the graphs that already exist on Mantis.

So just install the files and insert this variable in
your config_inc.php file to create a Custom Menu.

$g_main_menu_custom_options = array( array( "Custom Graphs", MANAGER,
'custom_graphs.php' ));
guilherme ferro

guilherme ferro

2005-01-10 08:00

reporter   ~0008907

Hy suhavna ,

Thanks for your help again!!

I´ve customized mantis so much that I cann´t upgrade to the new versions, so I´ll have to do a manual upgrade so that your scripts work fine, but it seems to be what i was looking for!

Guilherme
suhavna

suhavna

2005-01-10 18:26

reporter   ~0008918

Guillame: Do you have any idea why the script doesn't not work with the passed variable?
guilherme ferro

guilherme ferro

2005-01-11 08:23

reporter   ~0008935

suhavna , no idea yet...I´ll take a better look and let you know of any progress!
MFWSchmidt

MFWSchmidt

2005-01-11 10:13

reporter   ~0008936

The suggested feature is related to issue 0004624 which I posted some weeks ago:
If a mechanism is created that produces a summary page based on selected filter criteria, a summary by date is possible as well as a summary by category or whatever a management question may be.
TomR

TomR

2006-05-09 15:41

reporter   ~0012800

Will this feature be included in some future release? Is it yet planned?
emathieu

emathieu

2006-11-14 17:05

reporter   ~0013721

Can somebody re-upload the missing attached files ?
thraxisp

thraxisp

2009-02-25 21:48

reporter   ~0020944

I think that this is implemented in the "graph" link off of the view issues page in the 1.1.x stream. It uses the current filter to generate a graph.

Is this what you are looking for?
thraxisp

thraxisp

2009-05-19 21:56

reporter   ~0021848

No response from reporter.
